Specifications
for Residential

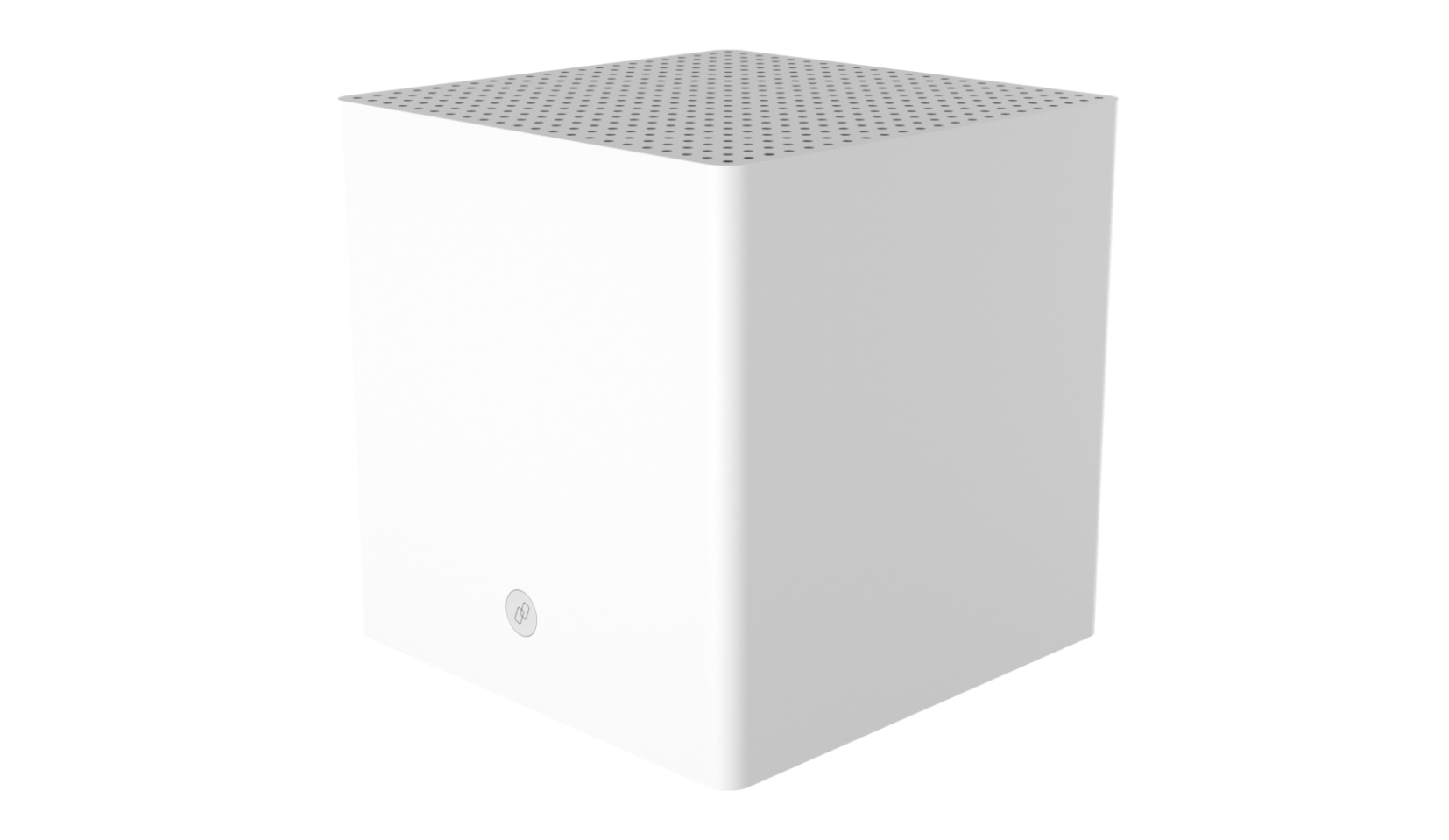

NOMAD cube INDOOR MODEM
The powerful Nomad Cube is our indoor modem. advanced high-power directional antennas that extend the reach of cellular networks, while also supporting 5G sub-6GHz and 4G LTE fallback, for the perfect balance of network coverage and performance. It has a one-time Nomad Cube Modem cost of $199.
What's Included
Your Nomad Cube includes everything you need to connect to the Internet. The Nomad Cube modem itself, power supply, power cable and internet cable.
-
Nomad Cube -
Ethernet Cable -
Power Adapter
Nomad cube
- Technical Standard: LTE Category 18, 5G NR Sub 6
-
Network technology:
4G LTE: B2, B4, B5, B13, B48, B66, DL 4x4 MIMO
5G: n2, n5, n48*, n66, n77, 256 QAM, DL 4x4 MIMO -
Cellular Modem:
Carrier Aggregation: Yes (Uplink)
LTE Performance Category: Cat 18
Max Theoretical Speeds: 600 Mbps Download, 75 Mbps Upload
- Wi-Fi Standard: 802.11 a/b/g/n/ac/ax
- Bands: Simultaneous 2.4 GHz and 5.0 GHz

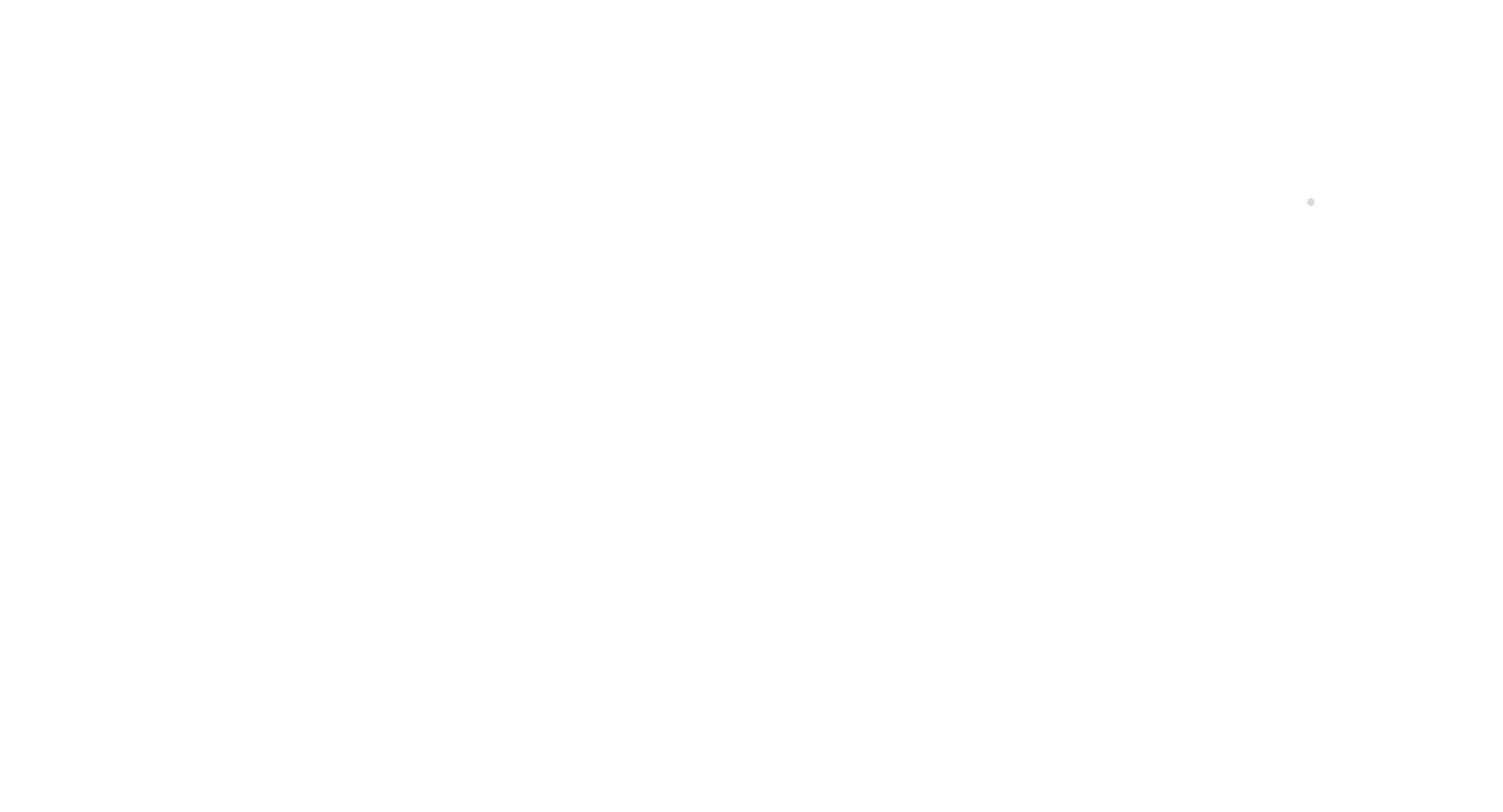

- Connectors/ports: 2 LAN port
-
Dimensions: 5.1” x 5.1” x 5.35”
(130 mm x 130 mm x 136 mm) - Operating temperature: 41° to 104°F (+5°C to +40°C)
For Travel and Residential

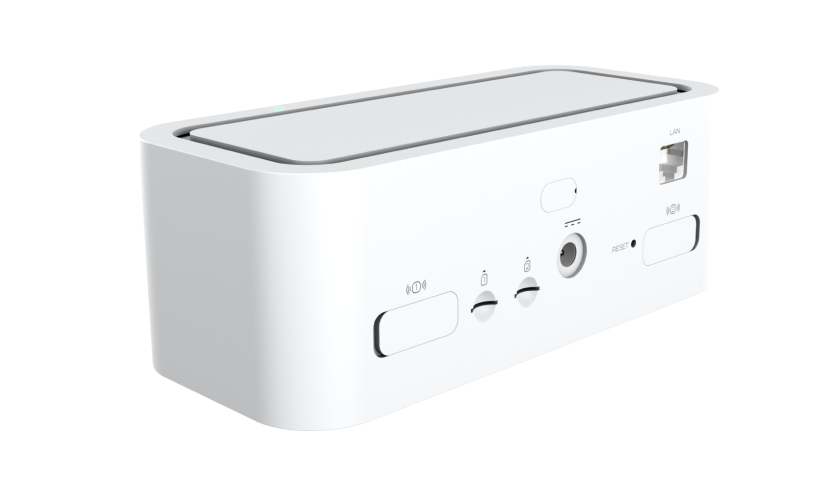

NOMAD AIR INDOOR MODEM
The powerful Nomad Air is our indoor modem. advanced high-power directional antennas that extend the reach of cellular networks, while also supporting 5G sub-6GHz and 4G LTE fallback, for the perfect balance of network coverage and performance. It has a one-time Nomad Air Modem cost of $299.
What's Included
Your Nomad Air includes everything you need to connect to the Internet. The Nomad Air modem itself, power supply, power cable and internet cable.
-
Nomad Air -
Ethernet Cable -
Power Supply -
Power Cable
Nomad AIR
- Chipset: Qualcomm® Snapdragon™ SDX55
-
Network technology:
- 5G sub-6 GHz and 4G LTE Cat 22
- 4x4 MIMO sub-6 GHz
- 256 QAM
- HSPA+/UMTS
- CBRS -
Wi-Fi version: Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Wi-Fi connections: Up to 30 connected devices
Wi-Fi bands: Real simultaneous dual-band Wi-Fi (2.4GHz & 5GHz) -

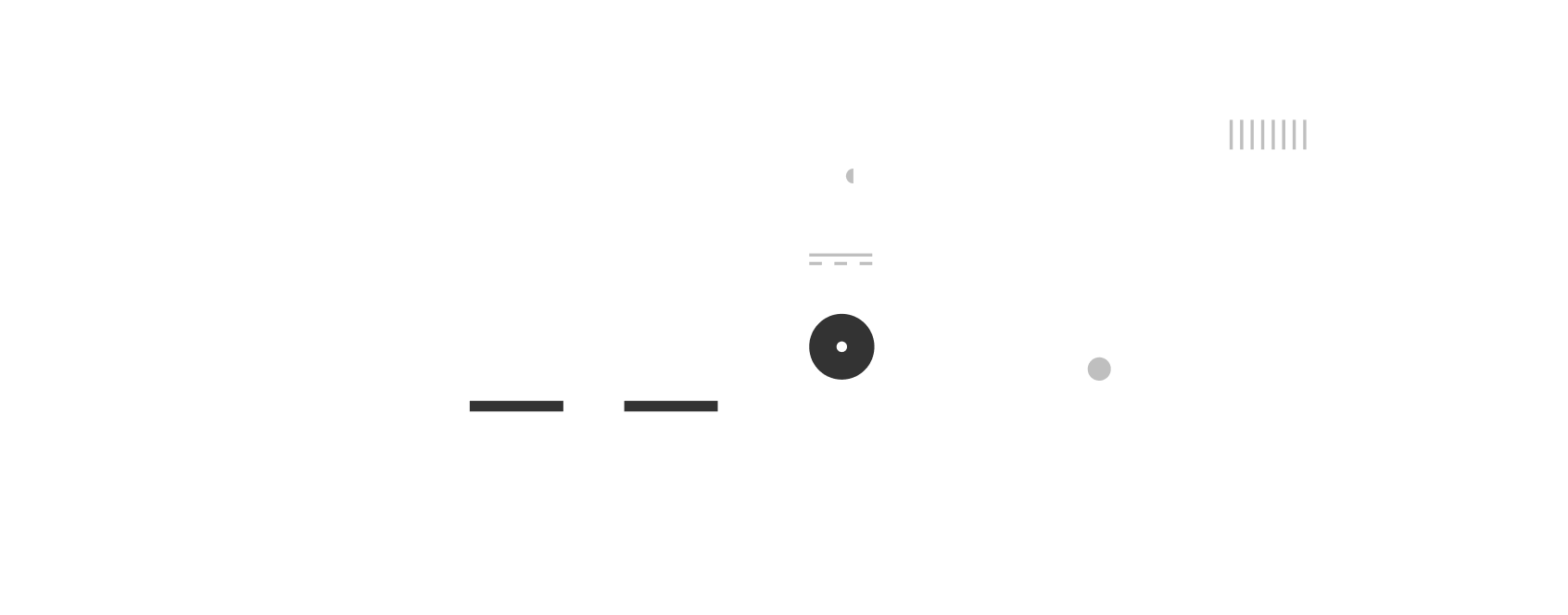

Connectors/ports:
- 1 LAN port
- 1 USB-C port - Dimensions: 6.3” x 2.8” x 2.4”(160 mm x 71.6 mm x 60 mm)
- Weight: 12 oz (350 g)
- Operating temperature: 32° to 113°F (0°C to 45°C)
- SIM type: Dual SIM (4FF Nano)
-
Security:
Secure Boot
Admin Security
AES 256 Encryption
Security Hardened Web Interface
Session Timeout
Wi-Fi On/Off Control
Incorrect Password Lockout
Block Factory Reset
Encrypted Configuration Backup/Restore
Advanced Firewall -
Wi-Fi Security
Wi-Fi Security (WPA/WPA2/WPA3)
Wi-Fi Protected Setup (WPS 2.0)
Wi-Fi Privacy Separation
Configurable DNS
MAC Address Filtering
NAT Firewall
Port Forwarding
Port Filtering - Anti CSRF (OWASP)
-
Connectors/ports:
1 LANport
1 USB-C port
OpenVPN
for BUSINESS and Gamers

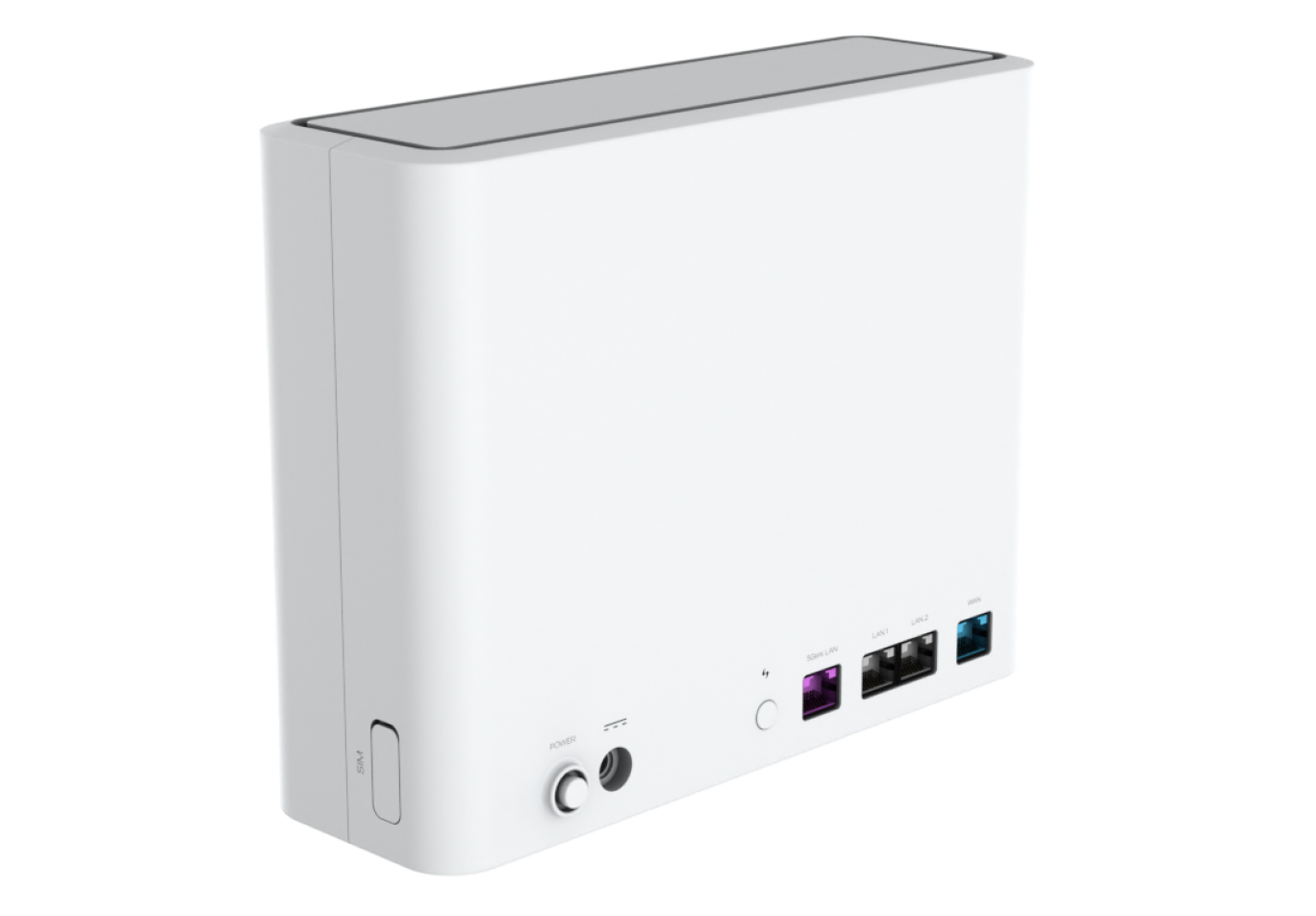

NOMAD BUSINESS INDOOR MODEM
The Raptor will solve all your wireless business needs. advanced high-power directional antennas that extend the reach of cellular networks, while also supporting 5G sub-6GHz and 4G LTE fallback, for the perfect balance of network coverage and performance. It has a one-time Nomad Raptor Modem cost of $799
What's Included
Your Nomad Raptor includes everything you need to connect to the Internet. The Nomad Raptor modem itself, power supply, power cable and internet cable.
-
Nomad RAPTOR -
Ethernet Cable -
Power Supply -
Power Cable
Nomad RAPTOR
- Chipset: Qualcomm® Snapdragon™ SDX55
-
Network technology:
- 5G sub-6 GHz and 4G LTE Cat 22
- 4x4 MIMO sub-6 GHz
- 256 QAM
- HSPA+/UMTS
- CBRS -
Wi-Fi version:
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Wi-Fi connections: Up to 128 connected devices
Wi-Fi bands: Real simultaneous dual-band Wi-Fi (2.4GHz & 5GHz) - Connectors/ports:- 3x LAN port- 1x WLAN port
- Dimensions: 9 x 3 x 6.8 in (230 x 76 x 172.5 mm)
- Weight: 59 oz (1,675 g)
- Operating temperature: 32° to 113°F (0°C to 45°C)
- SIM type: Dual SIM (4FF Nano)
-
Security features:
AES 256 Encryption
Security hardened web interface
Password hash
Session timeout
Wi-Fi on/off control
Incorrect password lockout
Configurable DNS
MAC address filtering NAT firewall
Port forwarding
Port filtering
Anti CSRF (OWASP)
OpenVPN
IPsec VPN -
Systems supported:
Windows® 7, 8, 10
Mac OS® X 10.10 or higher
Linux® Ubuntu 14.04 or higher
for Residential (archived)

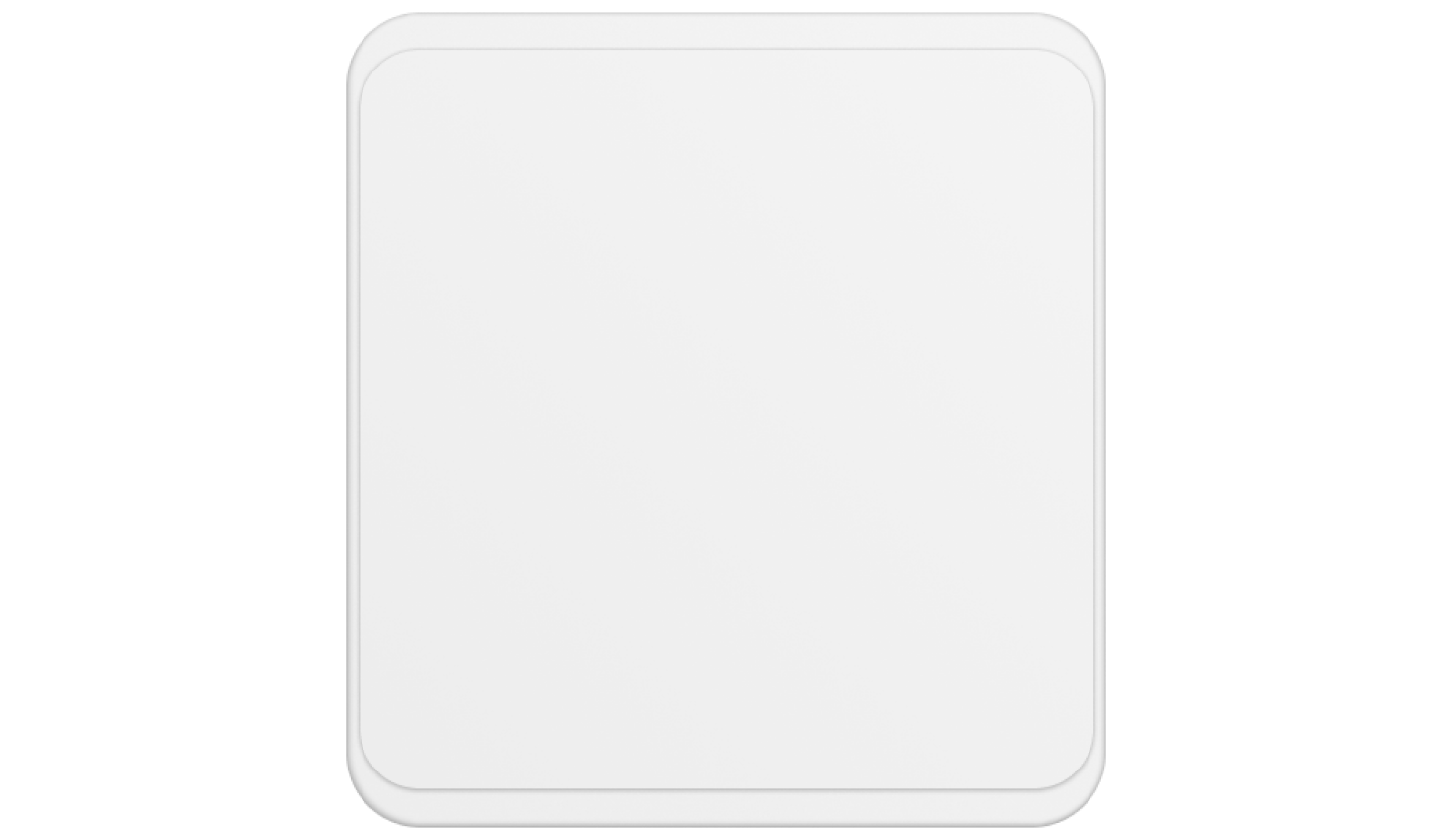

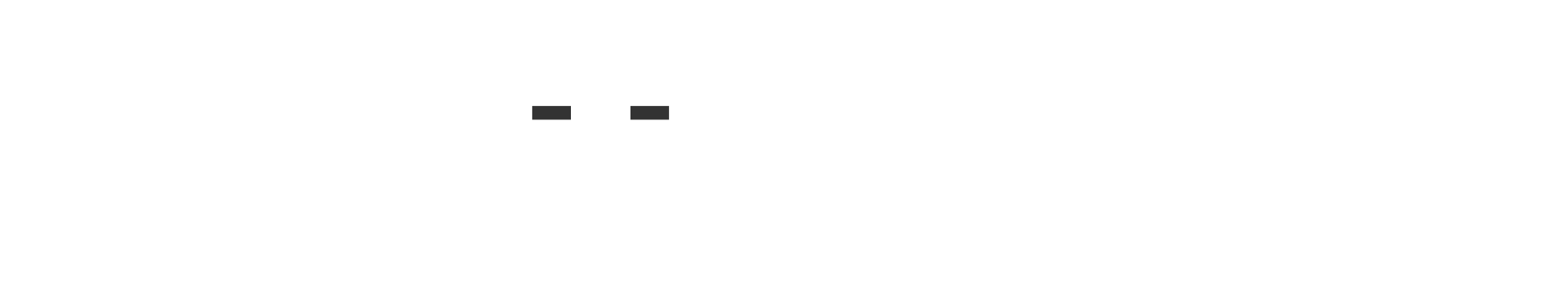

NOMAD ARK outdoor MODEM
High-speed, wireless low-latency internet on an as-needed basis at any destination where Nomad Internet provides active coverage. $130/mo with a one-time cost of $699 for a Nomad ARK Modem.
What's Included
Your Nomad ARK includes everything you need to connect to the Internet. The Nomad ARK modem itself, power supply, power cable and internet cable.
-
Nomad ARK -
Ethernet Cable -
Power Supply -
Power Cable
Nomad ARK
- Chipset: Qualcomm® Snapdragon™ SDX55
-
Network technology:
- 5G sub-6 GHz and 4G LTE Cat 22
- 4x4 MIMO Sub-6, 4X4 MIMO LTE -
Download speeds: 4.14 Gbps Download /
660 Mbps Upload* - Connectors/ports: 5Gbps Ethernet LAN Port
- Dimensions: 16.9 x 15.75 x 2.8 in (430 x 400 x 71.1 mm)
- Weight: 9.3lbs (4.22 kg)
- Operating temperature: -22° to 158°F
(-30°C to 70°C) - SIM type: Dual SIM (4FF Nano)
-
Security:
Third-party penetration testing verified
Security hardened web interface – TLS, SSL
Password hash
Anti-CSRF
Session timeout
Incorrect password lockout
Firewall with adjustable settings and rules
Port filtering
Port forwarding
MAC filtering -
Systems supported:
Windows 10 and later
MacOS 10.14 and later
Linux® Ubuntu 18.04 LTS and later
